T-PATTERN GLOBLE VALVES

BOLTED BONNET GLOBE VALVES

BASIC CONFIGURATION

Production Range – 15 NB – 1000 NB

THREADED AND SOCKET WELD ENDS

WORKING PRESSURE RATING	SIZE		STANDARD DESIGN TYPE	A-RF		A-RJ		B		C		H			WEIGHT			FIGURE
WORKING PRESSURE RATING	NPS	DN	STANDARD DESIGN TYPE	mm	in	mm	in	mm	in	mm	in	mm	in	kg		lb
ASME 150	½”	15	SI	108	4.25	N.A.	N.A.	10	0.39	88	3.5	196	7.7	3		6.6	L1-303
	¾”	20	SI	117.5	4.63	N.A	N.A	14	0.55	88	3.5	196	7.7	3.8		8.4	L1-304
	1”	25	SI	127	5.00	140	5.50	17	0.66	97	3.8	226	8.9	5.5		12.1	L1-305
	1-1/2”	40	SI	165	6.50	178	7.00	29	1.14	138	5.4	273	10.7	10.3		22.7	L1-307
	2”	50	SI	203	7.99	216	8.49	35	1.38	172	6.8	300	11.8	15.8		34.8	L1-308
ASME 300	½”	15	SI	152.5	6.00	163.5	6.44	9	0.35	88	3.5	196	7.7	4.1		9.0	L3-303
	¾”	20	SI	178	7.01	190.5	7.51	13	0.51	88	3.5	202	8.0	6		13.2	L3-304
	1”	25	SI	203	7.99	216	8.49	17	0.66	97	3.8	226	8.9	8.3		18.3	L3-305
	1-1/2”	40	SI	229	9.02	241	9.52	29	1.14	138	5.4	270	10.6	15.5		34.2	L3-307
	2”	50	SI	267	10.51	282.5	11.13	35	1.38	172	6.8	321	12.6	21.5		47.4	L3-308
ASME 600	½”	15	SI	165	6.50	163.5	6.44	9	0.35	88	3.5	177	7.0	4.4		9.7	L6-303
	¾”	20	SI	191	7.52	190.5	7.52	13	0.51	88	3.5	202	8.0	6.2		13.7	L6-304
	1”	25	SI	216	8.50	216	8.50	17	0.66	97	3.8	234	9.2	8.7		19.2	L6-305
	1-1/2”	40	SI	241	9.49	241	9.49	29	1.14	138	5.4	270	10.6	16.5		36.4	L6-307
	2”	50	SI	292	11.50	295	11.62	35	1.38	172	6.8	321	12.6	23.6		52.0	L6-308

ASME 1500	½”	15	SI	216	8.50	216	8.50	9	0.35	88	3.5	190	7.5	7.6	16.8	15FL-303
	¾”	20	SI	229	9.02	229	9.02	14	0.55	97	3.8	230	9.1	11.6	25.6	15FL 304
	1”	25	SI	254	10.00	254	10.00	14	0.55	138	5.4	270	10.6	15.3	33.7	15FL 305
	1-1/2”	40	SI	305	12.01	305	12.01	26	1.02	172	6.8	315	12.4	34.2	75.4	15FL 307
	2”	50	SI	368	14.49	371.5	14.61	34	1.34	172	6.8	355	14.0	52.2	115.1	15FL 308
ASME 150	½”	15	SI	108	4.25	N.A.	N.A	13	0.51	88	3.5	196	7.7	3.8	8.4	1-303
	¾”	20	S1	117.5	4.63	N.A.	N.A.	17.5	0.69	97	3.8	230	9.1	6.4	14.1	1-304
	1”	25	S1	127	5.00	140	5.50	22.5	0.89	138	5.4	268	10.6	8.7	19.2	1-305
	1-1/2”	40	S1	165	6.50	178	7.00	35	1.38	172	6.8	315	12.4	16.5	36.4	1-307
	2”	50	S1	203	7.99	216	8.49	45	1.77	172	6.8	335	13.2	25	55.1	1-308
ASME 300	½”	15	SI	152.5	6.00	163.5	6.44	13	0.51	88	3.5	196	7.7	4.1	9.0	3-303
	¾”	20	SI	178	7.01	190.5	7.51	17.5	0.69	97	3.8	230	9.1	7	15.4	3-304
	1”	25	SI	203	7.99	216	8.49	22.5	0.89	138	5.4	268	10.6	9.7	21.4	3-305
	1-1/2”	40	SI	229	9.02	241	9.52	35	1.38	172	6.8	315	12.4	18.5	40.8	3-307
	2”	50	SI	267	10.51	282.5	11.13	45	1.77	172	6.8	335	13.2	28	61.7	3-308
ASME 600	½”	15	SI	165	6.50	163.5	6.44	13	0.51	88	3.5	196	7.7	5.9	13.0	6-303
	¾”	20	SI	191	7.52	190.5	7.52	17.5	0.69	97	3.8	230	9.1	8	17.6	6-304
	1”	25	SI	216	8.50	216	8.50	22.5	0.89	138	5.4	268	10.6	10.5	23.1	6.-305
	1-1/2”	40	SI	241	9.49	241	9.49	35	1.38	172	6.8	315	12.4	19.5	43.0	6-307
	2”	50	SI	292	11.50	295	11.62	45	1.77	172	6.8	370	14.6	28.5	62.8	6-308
ASME 1500	½”	15	SI	216	8.50	216	8.50	12	0.47	97	3.8	240	9.4	8.5	18.7	15F 303
	¾”	20	SI	229	9.02	229	9.02	14.5	0.57	138	5.4	280	11.0	12.9	28.4	15F 304
	1”	25	SI	254	10.00	254	10.00	19	0.75	172	6.8	295	11.6	17	37.5	15F 305
	1-1/2”	40	SI	305	12.01	305	12.01	31	1.22	172	6.8	370	14.6	30	66.1	15F 307
	2”	50	SI	368	14.49	371.5	14.61	38	1.50	234	9.2	465	18.3	58	127.9	15F 308
ASME 2500	½”	15	S2	264	10.39	264	10.39	11	0.43	138	5.4	310	12.2	16.5	36.4	25RF 303
	¾”	20	S2	273	10.75	273	10.75	14.5	0.57	138	5.4	315	12.4	18.5	40.8	25RF 304
	1”	25	S2	308	12.13	308	12.13	19	0.75	172	6.8	350	13.8	30	66.1	25RF 305
	1-1/2”	40	S2	384	15.12	387	15.24	28	1.10	234	9.2	450	17.7	61.5	135.6	25RF 307
	2”	50	S2	451	17.76	454	17.88	38	1.50	320	12.6	460	18.1	67	147.7	25RF 308

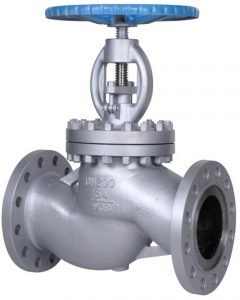

ASME CLASS 150

DIMENSIONS

Cast steel & Stainless Steel Globe Valve:

Bolted bonnet, Outside screw-and-yoke, Rising stem Non-rising handwheel, Flexible wedge.

Size				FACE TO FACE				API 600(RF ENDS)				API 603(RF ENDS)
Size		L1:RF		L2 : RTJ		L3:BW		H		D		H		D
mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch
50	2	203	8	216	8-1/2	203	8	273	10-3/4	200	7-7/8	273	10-3/4	180	7
65	2-1/2	216	8-1/2	229	9	216	8-1/2	314	12-1/3	250	9-5/6	314	12-1/3	180	7
80	3	241	9-1/2	254	10	241	9-1/2	343	13-1/2	250	9-5/6	343	13-1/2	200	7-7/8
100	4	292	11-1/2	305	12	292	11-1/2	368	14-1/2	300	11-4/5	368	14-1/2	250	9-5/6
150	6	406	16	419	16-1/2	406	16	486	19-1/7	450	17-5/7	486	19-1/7	300	11-4/5
200	8	495	19-1/2	508	20	495	19-1/2	585	22-1/4	450	17-5/7	585	22-1/4	450	17-5/7
250	10	622	24-1/2	635	25	622	24-1/2	637	25	450	17-5/7	637	25	450	17-5/7
300	12	698	27-1/2	711	28	698	27-1/2	695	27-1/3	610	24	695	27-1/3	610	24
350	14	787	31	800	31-1/2	787	31	695	27-1/3	610	24	695	27-1/3	610	24
400	16	914	36	927	36-1/2	914	36	1600	63
450	18	978	38-1/2	991	39	978	38-1/2	1600	63
500	20	978	38-1/2	991	39	978	38-1/2	1650	65
600	24	1295	51	1308	51-1/2	1295	51	1650	65

ASME CLASS 300

DIMENSIONS

Cast steel & Stainless Steel Globe Valve:

Bolted bonnet, Outside screw-and-yoke, Rising stem Non-rising handwheel, Flexible wedge.

Size				FACE TO FACE				API 600(RF ENDS)				API 603(RF ENDS)
Size		L1:RF		L2 : RTJ		L3:BW		H		D		H		D
mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch
50	2	267	10-1/2	283	11-1/8	267	10-1/2	329	13	200	7-7/8	329	13	180	7
65	2-1/2	292	11-1/2	308	12-1/8	292	11-1/2	354	14	250	9-5/6	354	14	250	9-5/6
80	3	318	12-1/2	333	13-1/8	318	12-1/2	383	15	250	9-5/6	383	15	250	9-5/6
100	4	356	14	372	14-5/8	356	14	443	17-4/9	300	11-4/5	443	17-4/9	300	11-4/5
150	6	444	17-1/2	460	18-1/9	444	17-1/2	567	22-1/3	450	17-5/7	567	22-1/3	450	17-5/7
200	8	559	22	575	22-2/3	559	22	615	24-1/5	450	17-5/7	615	24-1/5	450	17-5/7
250	10	622	24-1/2	638	25-1/8	622	24-1/2	676	26-3/5	610	24	676	26-3/5	610	24
300	12	711	28	727	28-5/8	711	28	740	29-1/7	610	24	740	29-1/7	610	24
350	14	864	34	778	30-5/8	864	34	1300	51-1/6
400	16	978	38-1/2	879	34-3/5	978	38-1/2	1500	59

ASME CLASS 600

DIMENSIONS

Cast steel & Stainless Steel Globe Valve:

Bolted bonnet, Outside screw-and-yoke, Rising stem Non-rising handwheel, Flexible wedge.

Size				FACE TO FACE				API 600(RF ENDS)				API 603(RF ENDS)
Size		L1:RF		L2 : RTJ		L3:BW		H		D		H		D
mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch
50	2	292	11-1/2	295.3	11-5/8	292	11-1/2	394	15-1/2	250	9-5/6	394	15-1/2	180	7
65	2-1/2	330	13	333.4	13-1/8	330	13	450	17-5/7	300	11-4/5	427	16-4/5	200	7-7/8
80	3	356	14	359	14-1/8	356	14	520	20-1/2	350	13-7/9	475	18-5/7	300	11-4/5
100	4	432	17	435	17-1/8	432	17	609	24	350	13-7/9	591	23-1/4	450	17-5/7
150	6	569	22	562	22-1/8	559	22	750	29-1/2	450	17-5/7	801	31-1/2	560	22
200	8	660	26	664	26-1/8	660	26	815	32	610	24	1005	39-4/7	610	24
250	10	787	31	791	31-1/8	787	31	885	34-5/6	610	24	1192	47	610	24
300	12	838	33	841	33-1/8	838	33	955	37-3/5			1490	58-2/3

ASME CLASS 900 & 1500

DIMENSIONS

Cast steel & Stainless Steel Globe Valve:

Bolted bonnet, Outside screw-and-yoke, Rising stem Non-rising handwheel, Flexible wedge.

Size				FACE TO FACE				API 600(RF ENDS)
Size		L1:RF		L2 : RTJ		L3:BW		H		D
mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch
Class 900
50	2	368	14-1/2	372	14-5/8	368	14-1/2	450	17-5/7	350	13-7/9
80	3	381	15	384	15-1/8	381	15	535	21	450	17-5/7
100	4	457	18	460	18-1/8	457	18	623	24-1/2	450	17-5/7
150	6	610	24	613	24-1/8	610	24	785	31	610	24
200	8	737	29	740	29-1/8	737	29	860	33-6/7	610	24
250	10	838	33	841	33-1/8	838	33	1350	53-1/7
300	12	965	38	968	38-1/8	965	38	1500	59

50	2	368	14-1/2	372	14-5/8	368	14-1/2	500	19-2/3	350	13-7/9
80	3	470	18-1/2	473	18-5/8	470	18-1/2	550	21-2/3	450	17-5/7
100	4	546	21-1/2	549	21-5/8	546	21-1/2	615	24-1/5	450	17-5/7
150	6	705	27-3/4	711	28	705	27-3/4	790	31-1/9
200	8	832	32-3/4	841	33-1/8	832	32-3/4	1150	45-2/7
250	10	900	39	1000	39-3/8	900	39
300	12	1130	44-1/2	1146	45-1/8	1130	44-1/2

T-PATTERN GLOBLE VALVES

BOLTED BONNET GLOBE VALVES

BASIC CONFIGURATION

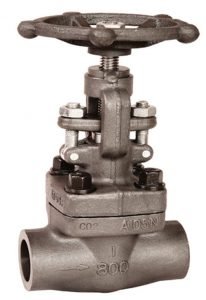

THREADED AND SOCKET WELD ENDS

WORKING PRESSURE RATING	SIZE		STANDARD DESIGN TYPE	A		B		C		H		WEIGHT		FIGURE
WORKING PRESSURE RATING	NPS	DN	STANDARD DESIGN TYPE	mm	in	mm	in	mm	in	mm	in	kg	lb	FIGURE
ASME 800	½”	15	SI	80	3.15	9	0.35	88	3.5	166	6.5	2.1	4.6	HL 303	STANDARD BORE
	¾”	20	SI	90	3.54	13	0.51	88	3.5	171	6.7	2.3	5.0	HL 304
	1”	25	SI	110	4.33	17	0.66	97	3.8	213	8.4	3.7	8.2	HL 305
	1-1/2”	40	SI	150	5.91	29	1.14	138	5.4	258	10.2	7.4	16.3	HL 307
	2”	50	SI	180	7.09	35	1.38	172	6.8	300	11.8	11.9	26.2	HL 308
ASME 1500	½”	15	SI	90	3.54	9	0.35	88	3.5	166	6.5	2.4	5.3	9HL 303
	¾”	20	SI	110	4.33	12	0.47	97	3.8	210	8.3	4	8.8	9HL 304
	1”	25	SI	127	5.00	15	0.59	138	5.4	250	9.8	6.5	14.3	9HL 305
	1-1/2”	40	SI	180	7.09	27	1.06	172	6.8	300	11.8	13	28.7	9HL 307
	2”	50	SI	210	8.27	32	1.26	172	6.8	375	14.8	22	48.5	9HL 308
ASME 800	¼”	6	SI	80	3.15	7	0.28	88	3.5	166	6.5	2.2	4.9	H 301	FULL BORE
	3/8”	10	SI	80	3.15	9	0.35	88	3.5	166	6.5	2.2	4.9	H 302
	½”	15	SI	90	3.54	13	0.51	88	3.5	171	6.7	2.4	5.3	H 303
	¾”	20	SI	110	4.33	17	0.66	97	3.8	213	8.4	3.8	8.4	H 304
	1”	25	SI	127	5.00	22	0.86	138	5.4	247	9.7	6.1	13.4	H 305
	1-1/4”	32	SI	150	5.91	29	1.14	138	5.4	258	10.2	7.6	16.8	H 306
	1-1/2”	40	SI	180	7.09	35	1.38	172	6.8	300	11.8	12.5	27.6	H 307
	2”	50	SI	210	8.27	45	1.77	172	6.8	375	14.8	19.6	43.2	H 308
ASME 1500	¼”	6	SI	90	3.54	7	0.28	88	3.5	166	6.5	2.6	5.7	9H 301
	3/8”	10	SI	90	3.54	9	0.35	88	3.5	166	6.5	2.6	5.7	9H 302
	½”	15	SI	110	4.33	12	0.47	97	3.8	210	8.3	4.2	9.3	9H 303
	¾”	20	SI	127	5.00	15	0.59	138	5.4	247	9.7	6.5	14.3	9H 304
	1”	25	SI	150	5.91	20	0.79	138	5.4	256	10.1	8.5	18.7	9H 305
	1-1/4”	32	SI	180	7.09	27	1.06	172	6.8	300	11.8	12.5	27.6	9H 306
	1-1/2”	40	SI	210	8.27	32	1.26	172	6.8	375	14.8	22.3	49.2	9H 307
	2”	50	SI	210	8.27	38	1.50	234	9.2	428	16.9	36	79.4	9H 308
ASME 2500	½”	15	S2	150	5.91	11	0.43	138	5.4	304	12.0	10	22.0	25HR 303
	¾”	20	S2	150	5.91	14.5	0.57	138	5.4	304	12.0	10	22.0	25HR 304
	1”	25	S2	210	8.27	19	0.75	138	5.4	362	14.3	22	48.5	25HR 305
	1-1/2”	40	S2	230	9.06	28	1.10	234	9.2	436	17.2	38	83.8	25HR 307
	2”	50	S2	230	9.06	38	1.50	234	9.2	436	17.2	38	83.8	25HR 308

PRODUCT FEATURES:

Socket Weld acc to ASME B16.11.
Screwed ends (NPT) acc. To ASME B1.20.1
Butt welding ends acc. to ASME B16.25
End to End acc. to manufacturer standard.

T- PATTERN GLOBLE VALVES

BOLTED BONNET GLOBE VALVES

BASIC CONFIGURATION ASME INTEGRAL FLANGED ENDS

WORKING PRESSURE RATING	SIZE		STANDARD DESIGN TYPE	A-RF		A-RJ		B		C		H			WEIGHT			FIGURE
WORKING PRESSURE RATING	NPS	DN	STANDARD DESIGN TYPE	mm	in	mm	in	mm	in	mm	in	mm	in	kg		lb
ASME 150	½”	15	SI	108	4.25	N.A.	N.A.	10	0.39	88	3.5	196	7.7	3		6.6	L1-303
	¾”	20	SI	117.5	4.63	N.A	N.A	14	0.55	88	3.5	196	7.7	3.8		8.4	L1-304
	1”	25	SI	127	5.00	140	5.50	17	0.66	97	3.8	226	8.9	5.5		12.1	L1-305
	1-1/2”	40	SI	165	6.50	178	7.00	29	1.14	138	5.4	273	10.7	10.3		22.7	L1-307
	2”	50	SI	203	7.99	216	8.49	35	1.38	172	6.8	300	11.8	15.8		34.8	L1-308
ASME 300	½”	15	SI	152.5	6.00	163.5	6.44	9	0.35	88	3.5	196	7.7	4.1		9.0	L3-303
	¾”	20	SI	178	7.01	190.5	7.51	13	0.51	88	3.5	202	8.0	6		13.2	L3-304
	1”	25	SI	203	7.99	216	8.49	17	0.66	97	3.8	226	8.9	8.3		18.3	L3-305
	1-1/2”	40	SI	229	9.02	241	9.52	29	1.14	138	5.4	270	10.6	15.5		34.2	L3-307
	2”	50	SI	267	10.51	282.5	11.13	35	1.38	172	6.8	321	12.6	21.5		47.4	L3-308
ASME 600	½”	15	SI	165	6.50	163.5	6.44	9	0.35	88	3.5	177	7.0	4.4		9.7	L6-303
	¾”	20	SI	191	7.52	190.5	7.52	13	0.51	88	3.5	202	8.0	6.2		13.7	L6-304
	1”	25	SI	216	8.50	216	8.50	17	0.66	97	3.8	234	9.2	8.7		19.2	L6-305
	1-1/2”	40	SI	241	9.49	241	9.49	29	1.14	138	5.4	270	10.6	16.5		36.4	L6-307
	2”	50	SI	292	11.50	295	11.62	35	1.38	172	6.8	321	12.6	23.6		52.0	L6-308
ASME 1500	½”	15	SI	216	8.50	216	8.50	9	0.35	88	3.5	190	7.5	7.6		16.8	15FL-303
	¾”	20	SI	229	9.02	229	9.02	14	0.55	97	3.8	230	9.1	11.6		25.6	15FL 304
	1”	25	SI	254	10.00	254	10.00	14	0.55	138	5.4	270	10.6	15.3		33.7	15FL 305
	1-1/2”	40	SI	305	12.01	305	12.01	26	1.02	172	6.8	315	12.4	34.2		75.4	15FL 307
	2”	50	SI	368	14.49	371.5	14.61	34	1.34	172	6.8	355	14.0	52.2		115.1	15FL 308
ASME 150	½”	15	SI	108	4.25	N.A.	N.A	13	0.51	88	3.5	196	7.7	3.8		8.4	1-303
	¾”	20	S1	117.5	4.63	N.A.	N.A.	17.5	0.69	97	3.8	230	9.1	6.4		14.1	1-304
	1”	25	S1	127	5.00	140	5.50	22.5	0.89	138	5.4	268	10.6	8.7		19.2	1-305
	1-1/2”	40	S1	165	6.50	178	7.00	35	1.38	172	6.8	315	12.4	16.5		36.4	1-307
	2”	50	S1	203	7.99	216	8.49	45	1.77	172	6.8	335	13.2	25		55.1	1-308
ASME 300	½”	15	SI	152.5	6.00	163.5	6.44	13	0.51	88	3.5	196	7.7	4.1		9.0	3-303
	¾”	20	SI	178	7.01	190.5	7.51	17.5	0.69	97	3.8	230	9.1	7		15.4	3-304
	1”	25	SI	203	7.99	216	8.49	22.5	0.89	138	5.4	268	10.6	9.7		21.4	3-305
	1-1/2”	40	SI	229	9.02	241	9.52	35	1.38	172	6.8	315	12.4	18.5		40.8	3-307
	2”	50	SI	267	10.51	282.5	11.13	45	1.77	172	6.8	335	13.2	28		61.7	3-308
ASME 600	½”	15	SI	165	6.50	163.5	6.44	13	0.51	88	3.5	196	7.7	5.9		13.0	6-303
	¾”	20	SI	191	7.52	190.5	7.52	17.5	0.69	97	3.8	230	9.1	8		17.6	6-304
	1”	25	SI	216	8.50	216	8.50	22.5	0.89	138	5.4	268	10.6	10.5		23.1	6.-305
	1-1/2”	40	SI	241	9.49	241	9.49	35	1.38	172	6.8	315	12.4	19.5		43.0	6-307
	2”	50	SI	292	11.50	295	11.62	45	1.77	172	6.8	370	14.6	28.5		62.8	6-308
ASME 1500	½”	15	SI	216	8.50	216	8.50	12	0.47	97	3.8	240	9.4	8.5		18.7	15F 303
	¾”	20	SI	229	9.02	229	9.02	14.5	0.57	138	5.4	280	11.0	12.9		28.4	15F 304
	1”	25	SI	254	10.00	254	10.00	19	0.75	172	6.8	295	11.6	17		37.5	15F 305
	1-1/2”	40	SI	305	12.01	305	12.01	31	1.22	172	6.8	370	14.6	30		66.1	15F 307
	2”	50	SI	368	14.49	371.5	14.61	38	1.50	234	9.2	465	18.3	58		127.9	15F 308
ASME 2500	½”	15	S2	264	10.39	264	10.39	11	0.43	138	5.4	310	12.2	16.5		36.4	25RF 303
	¾”	20	S2	273	10.75	273	10.75	14.5	0.57	138	5.4	315	12.4	18.5		40.8	25RF 304
	1”	25	S2	308	12.13	308	12.13	19	0.75	172	6.8	350	13.8	30		66.1	25RF 305
	1-1/2”	40	S2	384	15.12	387	15.24	28	1.10	234	9.2	450	17.7	61.5		135.6	25RF 307
	2”	50	S2	451	17.76	454	17.88	38	1.50	320	12.6	460	18.1	67		147.7	25RF 308

ASME CLASS 150

DIMENSIONS

Cast steel & Stainless Steel Globe Valve:

Bolted bonnet, Outside screw-and-yoke, Rising stem Non-rising handwheel, Flexible wedge.

Size				FACE TO FACE				API 600(RF ENDS)				API 603(RF ENDS)
Size		L1:RF		L2 : RTJ		L3:BW		H		D		H		D
mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch
50	2	203	8	216	8-1/2	203	8	273	10-3/4	200	7-7/8	273	10-3/4	180	7
65	2-1/2	216	8-1/2	229	9	216	8-1/2	314	12-1/3	250	9-5/6	314	12-1/3	180	7
80	3	241	9-1/2	254	10	241	9-1/2	343	13-1/2	250	9-5/6	343	13-1/2	200	7-7/8
100	4	292	11-1/2	305	12	292	11-1/2	368	14-1/2	300	11-4/5	368	14-1/2	250	9-5/6
150	6	406	16	419	16-1/2	406	16	486	19-1/7	450	17-5/7	486	19-1/7	300	11-4/5
200	8	495	19-1/2	508	20	495	19-1/2	585	22-1/4	450	17-5/7	585	22-1/4	450	17-5/7
250	10	622	24-1/2	635	25	622	24-1/2	637	25	450	17-5/7	637	25	450	17-5/7
300	12	698	27-1/2	711	28	698	27-1/2	695	27-1/3	610	24	695	27-1/3	610	24
350	14	787	31	800	31-1/2	787	31	695	27-1/3	610	24	695	27-1/3	610	24
400	16	914	36	927	36-1/2	914	36	1600	63
450	18	978	38-1/2	991	39	978	38-1/2	1600	63
500	20	978	38-1/2	991	39	978	38-1/2	1650	65
600	24	1295	51	1308	51-1/2	1295	51	1650	65

ASME CLASS 300

DIMENSIONS

Cast steel & Stainless Steel Globe Valve:

Bolted bonnet, Outside screw-and-yoke, Rising stem Non-rising handwheel, Flexible wedge.

Size				FACE TO FACE				API 600(RF ENDS)				API 603(RF ENDS)
Size		L1:RF		L2 : RTJ		L3:BW		H		D		H		D
mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch
50	2	267	10-1/2	283	11-1/8	267	10-1/2	329	13	200	7-7/8	329	13	180	7
65	2-1/2	292	11-1/2	308	12-1/8	292	11-1/2	354	14	250	9-5/6	354	14	250	9-5/6
80	3	318	12-1/2	333	13-1/8	318	12-1/2	383	15	250	9-5/6	383	15	250	9-5/6
100	4	356	14	372	14-5/8	356	14	443	17-4/9	300	11-4/5	443	17-4/9	300	11-4/5
150	6	444	17-1/2	460	18-1/9	444	17-1/2	567	22-1/3	450	17-5/7	567	22-1/3	450	17-5/7
200	8	559	22	575	22-2/3	559	22	615	24-1/5	450	17-5/7	615	24-1/5	450	17-5/7
250	10	622	24-1/2	638	25-1/8	622	24-1/2	676	26-3/5	610	24	676	26-3/5	610	24
300	12	711	28	727	28-5/8	711	28	740	29-1/7	610	24	740	29-1/7	610	24
350	14	864	34	778	30-5/8	864	34	1300	51-1/6
400	16	978	38-1/2	879	34-3/5	978	38-1/2	1500	59

ASME CLASS 600

DIMENSIONS

Cast steel & Stainless Steel Globe Valve:

Bolted bonnet, Outside screw-and-yoke, Rising stem Non-rising handwheel, Flexible wedge.

Size				FACE TO FACE				API 600(RF ENDS)				API 603(RF ENDS)
Size		L1:RF		L2 : RTJ		L3:BW		H		D		H		D
mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch
50	2	292	11-1/2	295.3	11-5/8	292	11-1/2	394	15-1/2	250	9-5/6	394	15-1/2	180	7
65	2-1/2	330	13	333.4	13-1/8	330	13	450	17-5/7	300	11-4/5	427	16-4/5	200	7-7/8
80	3	356	14	359	14-1/8	356	14	520	20-1/2	350	13-7/9	475	18-5/7	300	11-4/5
100	4	432	17	435	17-1/8	432	17	609	24	350	13-7/9	591	23-1/4	450	17-5/7
150	6	569	22	562	22-1/8	559	22	750	29-1/2	450	17-5/7	801	31-1/2	560	22
200	8	660	26	664	26-1/8	660	26	815	32	610	24	1005	39-4/7	610	24
250	10	787	31	791	31-1/8	787	31	885	34-5/6	610	24	1192	47	610	24
300	12	838	33	841	33-1/8	838	33	955	37-3/5			1490	58-2/3

ASME CLASS 900 & 1500

DIMENSIONS

Cast steel & Stainless Steel Globe Valve:

Bolted bonnet, Outside screw-and-yoke, Rising stem Non-rising handwheel, Flexible wedge.

Size				FACE TO FACE				API 600(RF ENDS)
Size		L1:RF		L2 : RTJ		L3:BW		H		D
mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch
Class 900
50	2	368	14-1/2	372	14-5/8	368	14-1/2	450	17-5/7	350	13-7/9
80	3	381	15	384	15-1/8	381	15	535	21	450	17-5/7
100	4	457	18	460	18-1/8	457	18	623	24-1/2	450	17-5/7
150	6	610	24	613	24-1/8	610	24	785	31	610	24
200	8	737	29	740	29-1/8	737	29	860	33-6/7	610	24
250	10	838	33	841	33-1/8	838	33	1350	53-1/7
300	12	965	38	968	38-1/8	965	38	1500	59

50	2	368	14-1/2	372	14-5/8	368	14-1/2	500	19-2/3	350	13-7/9
80	3	470	18-1/2	473	18-5/8	470	18-1/2	550	21-2/3	450	17-5/7
100	4	546	21-1/2	549	21-5/8	546	21-1/2	615	24-1/5	450	17-5/7
150	6	705	27-3/4	711	28	705	27-3/4	790	31-1/9
200	8	832	32-3/4	841	33-1/8	832	32-3/4	1150	45-2/7
250	10	900	39	1000	39-3/8	900	39
300	12	1130	44-1/2	1146	45-1/8	1130	44-1/2
